STP11NM50N

N-channel Power MOSFET

STP11NM50N Features

* Order codes STD11NM50N STF11NM50N STP11NM50N

* VDSS @TJmax RDS(on) max < 0.47 Ω ID 1 3 3 550 V 8.5 A DPAK 1 2 TO-220 100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-220FP 3 1 2 Application Switching applications Figure 1. Internal

STP11NM50N General Description

These devices are made using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficienc.

STP11NM50N Datasheet (449.65 KB)

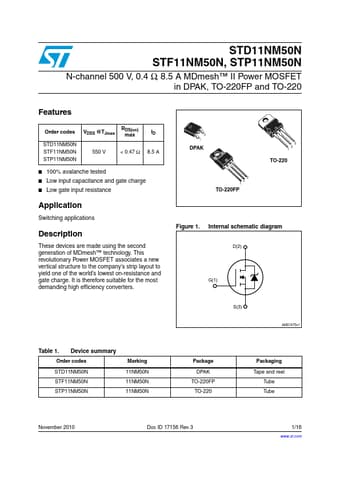

Preview of STP11NM50N PDF

Datasheet Details

Part number:

STP11NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

449.65 KB

Description:

N-channel power mosfet.
