STP11NM60

N-Channel MOSFET

STP11NM60 Features

* Typical RDS(on)=0.4Ω

* Low input capacitance and gate charge

* Low gate input resistance

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation

* APPLICATIONS

* Switching application

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

STP11NM60 Datasheet (201.20 KB)

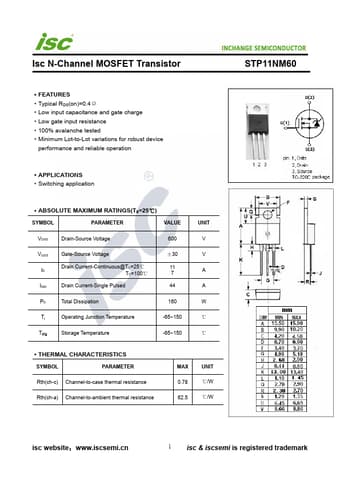

Preview of STP11NM60 PDF

Datasheet Details

Part number:

STP11NM60

Manufacturer:

INCHANGE

File Size:

201.20 KB

Description:

N-channel mosfet.
