STP110N8F7 N-Channel MOSFET

STP110N8F7 Description

isc N-Channel MOSFET Transistor .
Low Drain-Source On-Resistance APPLICATIONS. Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source.

STP110N8F7 Features

* Drain Current
* ID= 80A@ TC=25℃
* Drain Source Voltage- : VDSS= 80V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 7.5mΩ(Max)
* 100% avalanche tested

STP110N8F7 Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max. Operating Junction Temperature Tstg Storage Tempe

📥 Download Datasheet

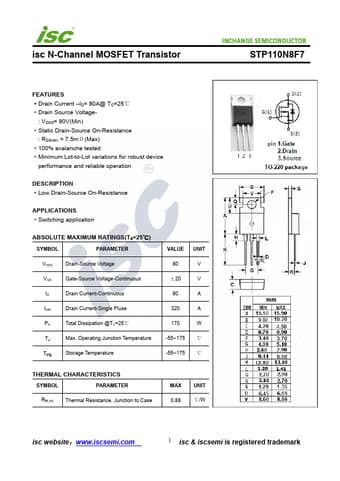

Preview of STP110N8F7 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP110N8F7
Manufacturer
INCHANGE
File Size
271.39 KB
Datasheet
STP110N8F7-INCHANGE.pdf
Description
N-Channel MOSFET
