STP105N3LL Datasheet, Mosfet, INCHANGE

STP105N3LL Features

  • Mosfet
  • Typical RDS(on)=0.0027Ω
  • With low gate drive requirements
  • High avalanche ruggedness
  • 100% avalanche tested
  • Minimum Lot-to-Lot variations for r

PDF File Details

Part number:

STP105N3LL

Manufacturer:

INCHANGE

File Size:

201.11kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

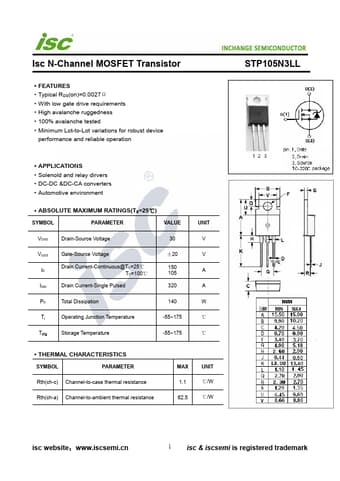

Datasheet Preview: STP105N3LL 📥 Download PDF (201.11kb)
Page 2 of STP105N3LL

STP105N3LL Application

  • Applications
  • Solenold and relay dirvers
  • DC-DC &DC-CA converters
  • Automotive environment
  • ABSOLUTE MAXIMUM RATINGS
