STP10NM60ND N-Channel MOSFET

INCHANGE

Description

Isc N-Channel MOSFET Transistor STP10NM60ND *.

📥 Download Datasheet

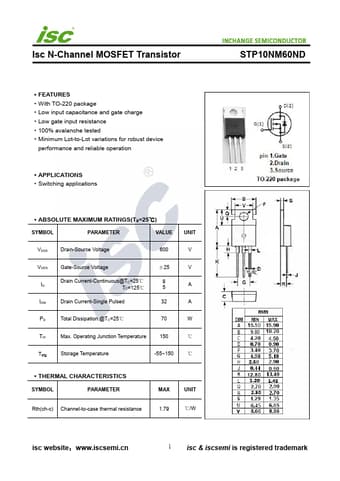

STP10NM60ND Datasheet Preview — Preview of STP10NM60ND PDF

Datasheet Specifications

Part number: STP10NM60ND
Manufacturer: INCHANGE
File Size: 252.24 KB
Datasheet: STP10NM60ND-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* With TO-220 package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGSS Gate-Source Voltage ±25 V ID Drain Current-Continuous@TC=25℃ TC=125℃ 8 5 A IDM Drain Current-Single Pulsed 32 A PD Total Dissipation @TC=25℃ 70
