STP10N105K5 - N-channel Power MOSFET

Datasheet Summary

Description

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.

Features

  • Order codes STF10N105K5 STP10N105K5 STW10N105K5 VDS 1050 V RDS(on) max. ID PTOT 1.3 Ω 30 W 6 A 130 W 130 W 3 12 TO-247 Figure 1: Internal schematic diagram D(2, TAB) G(1) S(3) AM01476v1.
  • Industry’s lowest RDS(on).
  • Industry’s best figure of merit (FoM).
  • Ultra low gate charge.
  • 100% avalanche tested.
  • Zener-protected.

📥 Download Datasheet

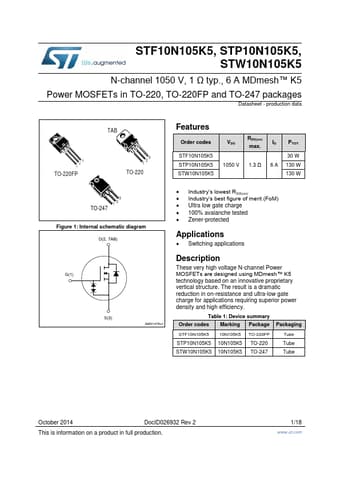

Datasheet preview – STP10N105K5

Datasheet Details

Part number STP10N105K5
Manufacturer STMicroelectronics
File Size 533.69 KB
Description N-channel Power MOSFET
Datasheet download datasheet STP10N105K5 Datasheet
Additional preview pages of the STP10N105K5 datasheet.
