STP10N95K5 - N-channel Power MOSFET

Product Overview

STMicroelectronics

Datasheet Details

Part number	STP10N95K5
Manufacturer	STMicroelectronics
File Size	1.26 MB
Description	N-channel Power MOSFET
Datasheet	STP10N95K5 Datasheet

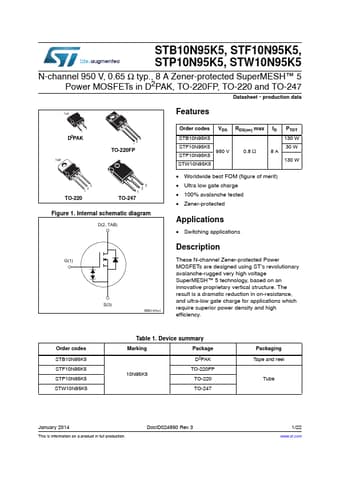

Additional preview pages of the STP10N95K5 datasheet.

Product details

Description

These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure.

Features

3 1 D2PAK TAB 3 2 1 TO-220FP 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram '7$%.
6 AM01476v1 Order codes VDS RDS(on) max ID PTOT STB10N95K5 STF10N95K5 950 V STP10N95K5 STW10N95K5 0.8 Ω 130 W 30 W 8A 130 W.
Worldwide best FOM (figure of merit).
Ultra low gate charge.
100% avalanche tested.
Zener-protected.
