STP10NB20FP Datasheet, Mosfet, ST Microelectronics

✔ STP10NB20FP Features

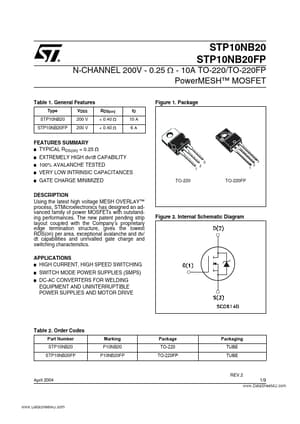

Type STP10NB20 STP10NB20FP VDSS 200 V 200 V RDS(on) < 0.40 Ω < 0.40 Ω ID 10 A 6A STP10NB20 STP10NB20FP Figure 1. Package FEATURES SUMMARY
TYPICAL RDS(on) = 0.25 Ω

✔ STP10NB20FP Application

HIGH CURRENT, HIGH SPEED SWITCHING
Figure 2. Internal Schematic Diagram SWITCH MODE POWER SUPPLIES (

PDF File Details

ST Microelectronics manufacturer logo

Part number:

STP10NB20FP

Manufacturer:

STMicroelectronics ↗

File Size:

195.73kb

Download:

📄 Datasheet

Description:

N - channel enhancement mode powermesh mosfet. Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstan
