STP10NK60ZFP - N-Channel MOSFET

STP10NK60ZFP Description

Isc N-Channel MOSFET Transistor *.

STP10NK60ZFP Features

* With TO-220F package
* Low input capacitance and gate charge
* Low gate input resistance
* Reduced switching and conduction losses
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP10NK60ZFP Applications

* Switching applications INCHANGE Semiconductor STP10NK60ZFP
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous @Tc=25℃ (VGS at 10V) Tc=100℃ Drain Current-Single Pulsed ±30 10 5.7 36 P

📥 Download Datasheet

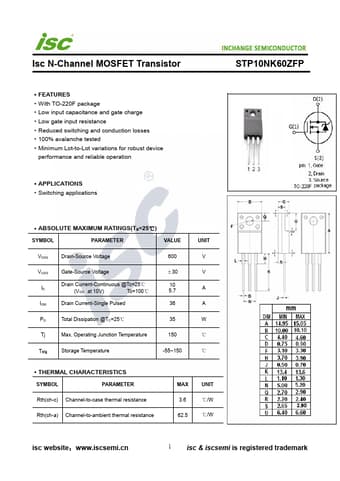

Preview of STP10NK60ZFP PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP10NK60ZFP
Manufacturer
INCHANGE
File Size
197.02 KB
Datasheet
STP10NK60ZFP-INCHANGE.pdf
Description
N-Channel MOSFET
