STP10NK80ZFP Datasheet, Mosfet, ST Microelectronics

STP10NK80ZFP Features

  • Mosfet TAB Type STP10NK80Z STP10NK80ZFP STW10NK80Z VDSS 800V 800V 800V RDS(on) <0.90Ω <0.90Ω <0.90Ω ID 9A 9A 9A Pw 160 W 40 W 160 W
  • Extremely high dv/dt capability
  • 1

PDF File Details

Part number:

STP10NK80ZFP

Manufacturer:

STMicroelectronics ↗

File Size:

332.37kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through

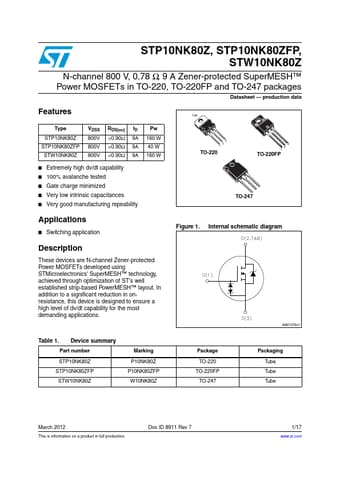

Datasheet Preview: STP10NK80ZFP 📥 Download PDF (332.37kb)
Page 2 of STP10NK80ZFP Page 3 of STP10NK80ZFP

STP10NK80ZFP Application

  • Applications
  • Switching application Description These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronic
