STP10NK50Z Datasheet, Mosfet, STMicroelectronics

STP10NK50Z Features

• Mosfet TYPE STP10NK50Z STF10NK50Z

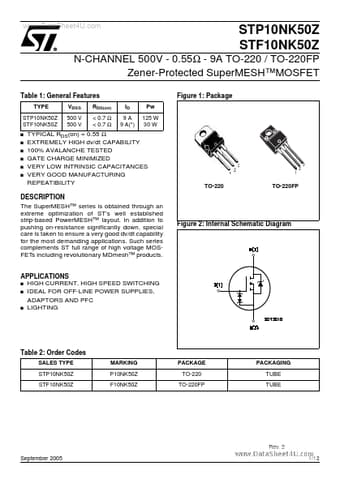

• STP10NK50Z STF10NK50Z Figure 1: Package ID 9A 9 A(
• ) Pw 125 W 30 W VDSS 500 V 500 V RD

PDF File Details

Part number:

STP10NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

529.17kb

Download:

📄 Datasheet

Description:

N-channel zener-protected supermesh mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

STP10NK50Z Application

• Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Figure 2: Internal Schematic
