STP10NM65N N-Channel MOSFET

STP10NM65N Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STP10NM65N *.

STP10NM65N Features

* With TO-220F package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP10NM65N Applications

* Switching applications
* Load switch
* Power management
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 650 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±25 9 5.7 36 PD Total Dissipati

📥 Download Datasheet

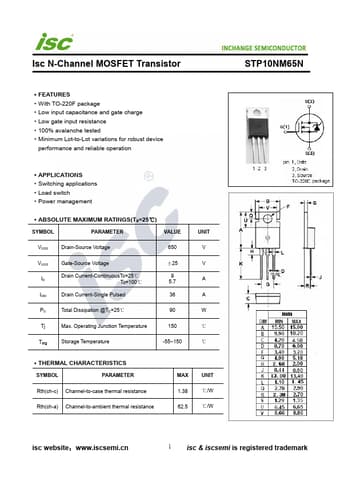

Preview of STP10NM65N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP10NM65N
Manufacturer
INCHANGE
File Size
201.73 KB
Datasheet
STP10NM65N-INCHANGE.pdf
Description
N-Channel MOSFET
