STP10NM60N - N-Channel Power MOSFET

Datasheet Summary

Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh technology.

This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.

Features

  • TAB TO-220 1 23 Order code VDS RDS(on) max. ID STP10NM60N 600 V 550 mΩ 10 A.
  • 100% avalanche tested.
  • Low input capacitance and gate charge.
  • Low gate input resistance D(2, TAB).

📥 Download Datasheet

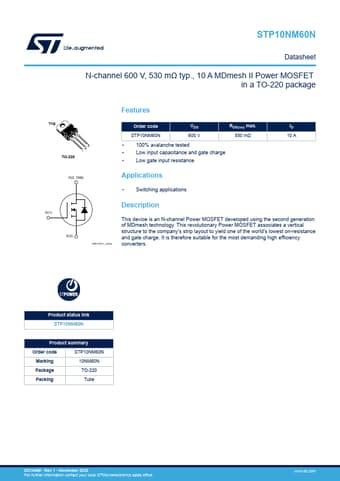

Datasheet preview – STP10NM60N
