STP10NM65N

N-channel Power MOSFET

STMicroelectronics

STP10NM65N Features

* www.DataSheet4U.com Type VDSS (@Tjmax) 710 V 710 V 710 V 710 V RDS(on) max < 0.48 Ω < 0.48 Ω < 0.48 Ω < 0.48 Ω ID 2 3 3 1 2 STD10NM65N STF10NM65N STP10NM65N STU10NM65N 9A 9 A(1) 9A 9A 1 TO-220 IPAK 1. Limited only by maximum temperature allowed

* 3 1 3 1 2 100% avalanche

STP10NM65N General Description

This series of devices implements the second generation of MDmesh™ Technology. This revolutionary Power MOSFET associates a new vertical structure to the Company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high effi.

STP10NM65N Datasheet (543.80 KB)

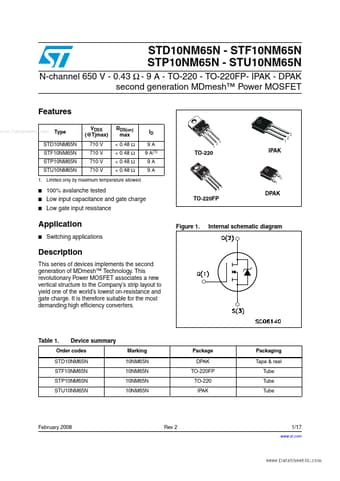

STP10NM65N Datasheet Preview — Preview of STP10NM65N PDF

Datasheet Details

Part number:

STP10NM65N

Manufacturer:

STMicroelectronics ↗

File Size:

543.80 KB

Description:

N-channel power mosfet.
STD10NM65N - STF10NM65N STP10NM65N - STU10NM65N N-channel 650 V - 0.43 Ω - 9 A - TO-220 - TO-220FP- IPAK - DPAK second generation MDmesh™ Power MOSFET.
