STP10NA40 - N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

Datasheet Summary

Description

This series of POWER MOSFETS represents the most advanced high voltage technology.

The optimized cell layout coupled with a new proprietary edge termination concur to give the device low RDS(on) and gate charge, unequalled ruggedness and superior switching performance.

📥 Download Datasheet

Datasheet preview – STP10NA40

Datasheet Details

Part number STP10NA40
Manufacturer STMicroelectronics
File Size 299.43 KB
Description N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR
Datasheet download datasheet STP10NA40 Datasheet
Additional preview pages of the STP10NA40 datasheet.

📁 Similar Datasheet

  • STP10N03 - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STP10N105K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP10N60M2 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP10N62K3 - N-channel Power MOSFET (STMicroelectronics)
  • STP10N65K3 - N-channel Power MOSFET (STMicroelectronics)
  • STP10N95K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP10NK50Z - N-CHANNEL Zener-Protected SuperMESH MOSFET (STMicroelectronics)
  • STP10NK60ZFP - N-Channel MOSFET (INCHANGE)
  • STP10NM50N - N-Channel Power MOSFET (STMicroelectronics)
  • STP10NM60N - N-Channel MOSFET (INCHANGE)
Other Datasheets by ST Microelectronics
  • STP10NA40FI - N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR
  • STP10N10L - N-Channel Enhancement Mode Low Threshold Power MOS Transistor
  • STP10N10LFI - N-Channel Enhancement Mode Low Threshold Power MOS Transistor
  • STP10NB20 - N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET
  • STP10NB20FP - N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET
  • STP10NB50 - N-CHANNEL Power MOSFET
  • STP10NB50FP - N-CHANNEL Power MOSFET
  • STP10NC50 - N-CHANNEL Power MOSFET

Full PDF Text Transcription

Click to expand full text

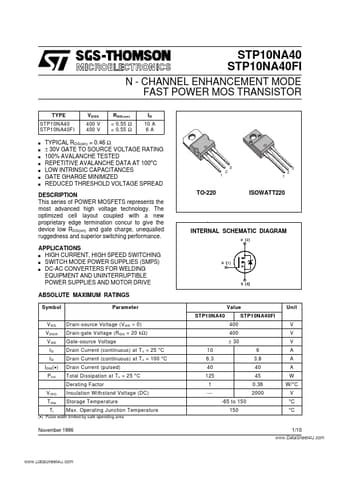

( DataSheet : www.DataSheet4U.com ) STP10NA40 STP10NA40FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STP10NA40 STP10NA40FI s s s s s s s VDSS 400 V 400 V R DS(on) < 0.55 Ω < 0.55 Ω ID 10 A 6A TYPICAL RDS(on) = 0.46 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE GHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD TO-220 3 1 2 3 1 2 DESCRIPTION This series of POWER MOSFETS represents the most advanced high voltage technology. The optimized cell layout coupled with a new proprietary edge termination concur to give the device low RDS(on) and gate charge, unequalled ruggedness and superior switching performance.
