STP10NB20 Datasheet, Mosfet, ST Microelectronics

STP10NB20 Features

  • Mosfet Type STP10NB20 STP10NB20FP VDSS 200 V 200 V RDS(on) < 0.40 Ω < 0.40 Ω ID 10 A 6A STP10NB20 STP10NB20FP Figure 1. Package FEATURES SUMMARY
  • TYPICAL RDS(on) = 0.25 Ω

PDF File Details

Part number:

STP10NB20

Manufacturer:

STMicroelectronics ↗

File Size:

195.73kb

Download:

📄 Datasheet

Description:

N - channel enhancement mode powermesh mosfet. Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstan

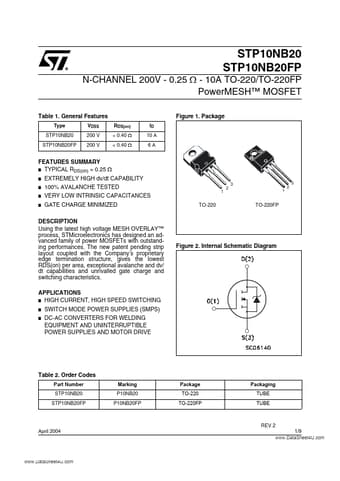

Datasheet Preview: STP10NB20 📥 Download PDF (195.73kb)
Page 2 of STP10NB20 Page 3 of STP10NB20

STP10NB20 Application

  • Applications
  • HIGH CURRENT, HIGH SPEED SWITCHING
  • Figure 2. Internal Schematic Diagram SWITCH MODE POWER SUPPLIES (SMP
