STP10NB50

N-CHANNEL Power MOSFET

STP10NB50 General Description

Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances. The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDS(on) per area, exceptiona.

STP10NB50 Datasheet (280.09 KB)

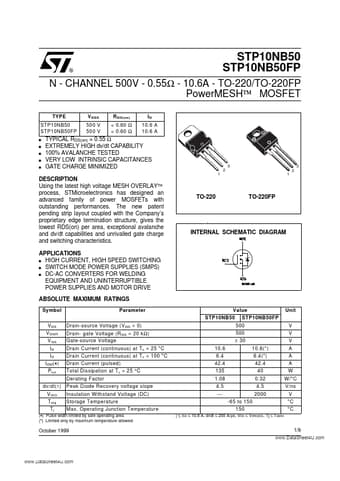

Preview of STP10NB50 PDF

Datasheet Details

Part number:

STP10NB50

Manufacturer:

STMicroelectronics ↗

File Size:

280.09 KB

Description:

N-channel power mosfet.
( DataSheet : www.DataSheet4U.com ) ® STP10NB50 STP10NB50FP N - CHANNEL 500V - 0.55Ω - 10.6A - TO-220/TO-220FP PowerMESH™ MOSFET TYPE STP10NB50 STP.
