STP100N8F6 Datasheet, Mosfet, INCHANGE

STP100N8F6 Features

  • Mosfet
  • Very low on-resistance
  • Very low gate charge
  • High avalanche ruggedness
  • Low gate drive power loss
  • 100% avalanche tested
  • Minimum Lot-t

PDF File Details

Part number:

STP100N8F6

Manufacturer:

INCHANGE

File Size:

200.94kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

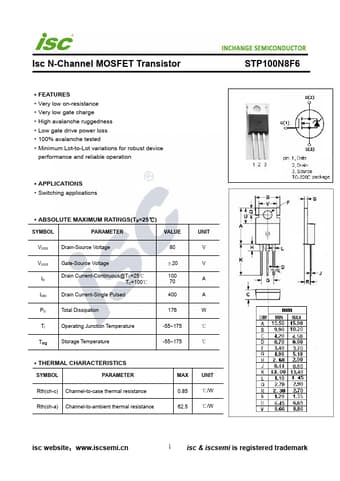

Datasheet Preview: STP100N8F6 📥 Download PDF (200.94kb)
Page 2 of STP100N8F6

STP100N8F6 Application

  • Applications
  • Switching applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 80 V
