STP100N6F7 - N-CHANNEL POWER MOSFET

STP100N6F7 Description

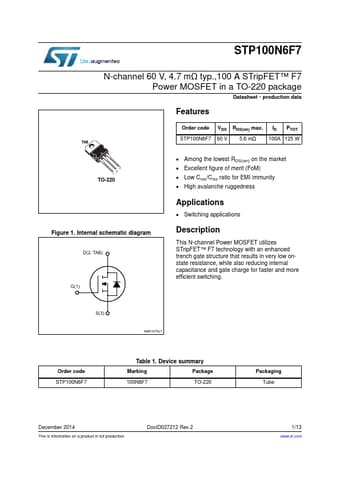

STP100N6F7 N-channel 60 V, 4.7 mΩ typ.,100 A STripFET™ F7 Power MOSFET in a TO-220 package Datasheet - production data .
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STP100N6F7 Features

* Order code VDS RDS(on) max. ID PTOT STP100N6F7 60 V 5.6 mΩ 100A 125 W TAB 3 2 1 TO-220 Figure 1. Internal schematic diagram ' 7$%
*
* Among the lowest RDS(on) on the market
* Excellent figure of merit (FoM)
* Low Crss/Ciss ratio for EMI immunity
* High av
