STP10LN80K5

N-channel Power MOSFET

STMicroelectronics

STP10LN80K5 Features

* Order code STP10LN80K5 VDS 800 V RDS(on) max. 0.63 Ω ID 8A

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This very high voltage

STP10LN80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STP10LN80K5 Datasheet (595.18 KB)

STP10LN80K5 Datasheet Preview — Preview of STP10LN80K5 PDF

Datasheet Details

Part number:

STP10LN80K5

Manufacturer:

STMicroelectronics ↗

File Size:

595.18 KB

Description:

N-channel power mosfet.

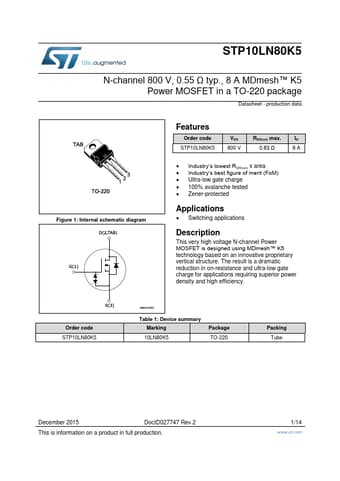

STP10LN80K5 N-channel 800 V, 0.55 Ω typ., 8 A MDmesh™ K5 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schematic d.
