STP15NK50Z Datasheet - STMicroelectronics

N-channel MOSFET

STP15NK50Z Features

* Type STP15NK50Z STP15NK50ZFP STB15NK50Z STB15NK50Z-1 STW15NK50Z VDSS 500V 500V 500V 500V 500V RDS(on) ID Pw

STP15NK50Z General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements.

STP15NK50Z Datasheet (483.71 KB)

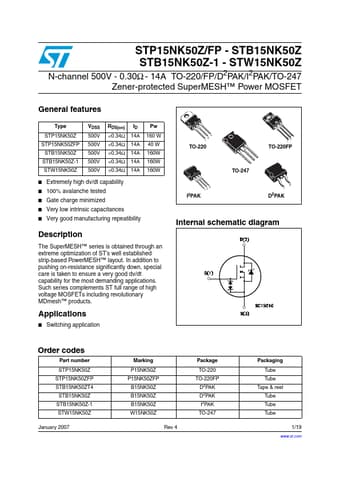

STP15NK50Z Datasheet Preview — Preview of STP15NK50Z PDF

Datasheet Details

Part number:

STP15NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

483.71 KB

Description:

N-channel mosfet.
STP15NK50Z/FP - STB15NK50Z STB15NK50Z-1 - STW15NK50Z N-channel 500V - 0.30Ω - 14A TO-220/FP/D2PAK/I2PAK/TO-247 Zener-protected SuperMESH™ Power MOSFET.
