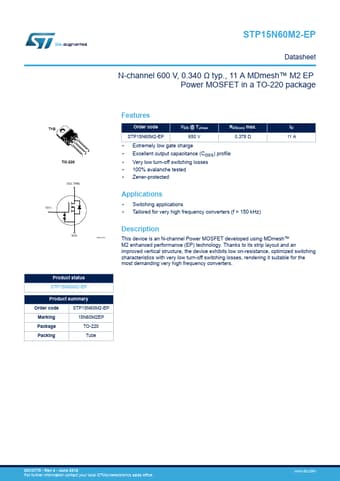

STP15N60M2-EP Datasheet, Mosfet, STMicroelectronics

STP15N60M2-EP Features

• Mosfet Order code VDS @ TJmax RDS(on) max. STP15N60M2-EP 650 V 0.378 Ω
• Extremely low gate charge
• Excellent output capacitance (COSS) profile
• Very low turn-

PDF File Details

Part number:

STP15N60M2-EP

Manufacturer:

STMicroelectronics ↗

File Size:

278.64kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ M2 enhanced performance (EP) technology. Thanks to its strip layout

STP15N60M2-EP Application

• Applications
• Switching applications
• Tailored for very high frequency converters (f > 150 kHz) ID 11 A S(3) AM01475V1 Product
