STP150N10F7 N-Channel MOSFET

STP150N10F7 Description

isc N-Channel MOSFET Transistor *.

STP150N10F7 Features

* With TO-220 packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP150N10F7 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS Gate-Source Voltage ±20 ID Drain Current-Continuous; 110 IDM Drain Current-Single Pulsed 440 PD Total Dissipation 250 Tj Operating Juncti

📥 Download Datasheet

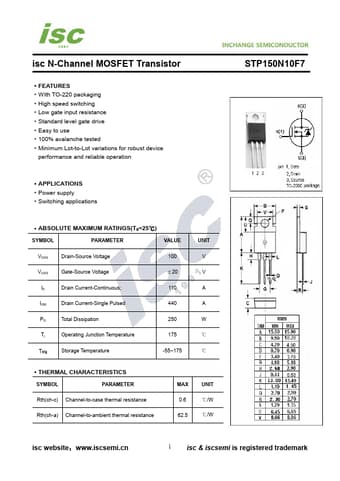

Preview of STP150N10F7 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP150N10F7
Manufacturer
INCHANGE
File Size
254.94 KB
Datasheet
STP150N10F7-INCHANGE.pdf
Description
N-Channel MOSFET
