STP150N3LLH6 - N-channel MOSFET

Product Overview

STMicroelectronics

Datasheet Details

Part number	STP150N3LLH6
Manufacturer	STMicroelectronics
File Size	973.60 KB
Description	N-channel MOSFET
Datasheet	STP150N3LLH6 Datasheet
Additional preview pages of the STP150N3LLH6 datasheet.

Product details

Description

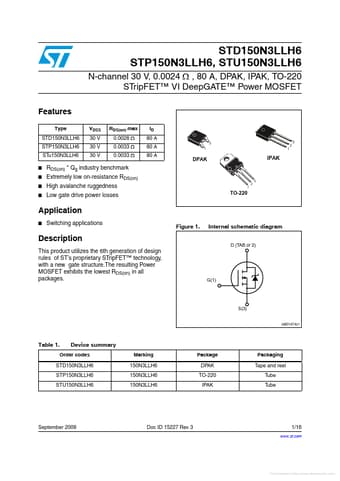

This product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.

Features

Type STD150N3LLH6 STP150N3LLH6 STu150N3LLH6.
VDSS 30 V 30 V 30 V RDS(on) max 0.0028 Ω 0.0033 Ω 0.0033 Ω ID 80 A 80 A 80 A 3 1 3 2 1 DPAK IPAK RDS(on).
Qg industry benchmark Extremely low on-resistance RDS(on) High avalanche ruggedness Low gate drive power losses 1 2 3 TO-220.
