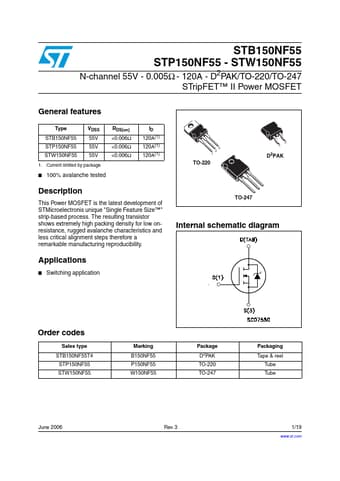

STP150NF55 Datasheet, Mosfet, STMicroelectronics

STP150NF55 Features

• Mosfet Type STB150NF55 STP150NF55 STW150NF55 VDSS 55V 55V 55V RDS(on) <0.006Ω <0.006Ω <0.006Ω 1. Current limited by package
• 100% avalanche tested ID 120A(1) 120A(1) 120A(1) De

PDF File Details

Part number:

STP150NF55

Manufacturer:

STMicroelectronics ↗

File Size:

529.00kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting tra

STP150NF55 Application

• Applications
• Switching application 3 2 1 TO-220 3 1 D2PAK TO-247 Internal schematic diagram Order codes Sales type STB150NF55T4 STP150
