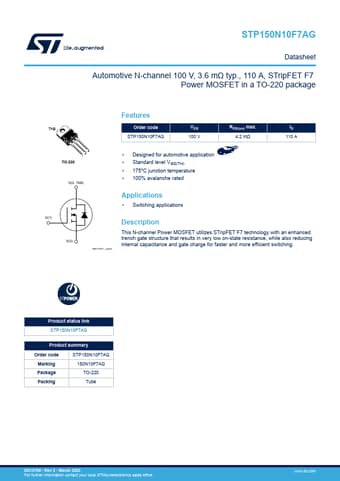

STP150N10F7AG Datasheet, Mosfet, STMicroelectronics

STP150N10F7AG Features

• Mosfet TAB Order code VDS RDS(on) max. ID STP150N10F7AG 100 V 4.2 mΩ 110 A TO-220 1 23 D(2, TAB)
• Designed for automotive application
• Standard level VGS(TH)

PDF File Details

Part number:

STP150N10F7AG

Manufacturer:

STMicroelectronics ↗

File Size:

223.66kb

Download:

📄 Datasheet

Description:

Automotive n-channel power mosfet. This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state

STP150N10F7AG Application

• Applications
• Switching applications G(1) S(3) AM01475v1_noZen Description This N-channel Power MOSFET utilizes STripFET F7 technology w
