STP15N05L N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

STP15N05L STP15N05LFI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP15N05L STP15N05LFI s s s s s s s s V DSS 50 V 50 V R DS( on) < 0.15 Ω < 0.15 Ω ID 15 A 10 A TYPICAL RDS(on) = 0.115 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE LOGIC LEVEL COMPATIBLE INPUT 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-220 ISOWATT220 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RE.

STP15N05L_STMicroelectronics.pdf

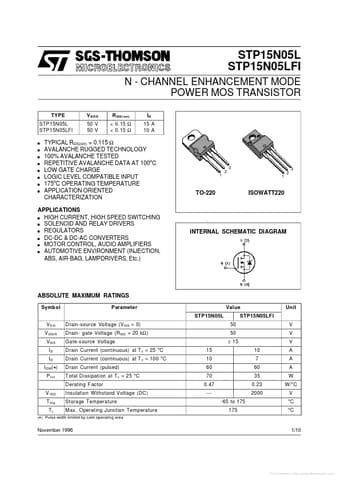

STP15N05L Datasheet Preview — Preview of STP15N05L PDF
