STP15N06LFI, STP15N06L Datasheet - STMicroelectronics

STP15N06LFI N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

STP15N06L STP15N06LFI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP15N06L STP15N06LFI s s s s s s s s V DSS 60 V 60 V R DS( on) < 0.15 Ω < 0.15 Ω ID 15 A 10 A TYPICAL RDS(on) = 0.115 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE LOGIC LEVEL COMPATIBLE INPUT 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-220 ISOWATT220 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELA.

STP15N06L_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP15N06LFI, STP15N06L. Please refer to the document for exact specifications by model.

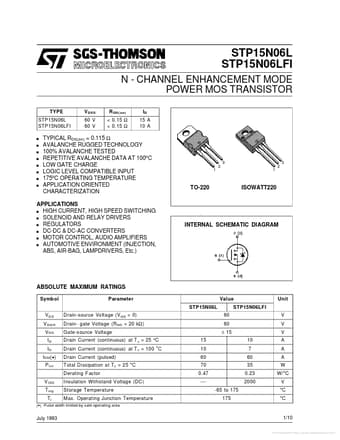

STP15N06LFI Datasheet Preview Page 2 STP15N06LFI Datasheet Preview Page 3

Datasheet Details

Part number:

STP15N06LFI, STP15N06L

Manufacturer:

STMicroelectronics ↗

File Size:

215.38 KB

Description:

N-channel enhancement mode power mos transistor.

Note:

This datasheet PDF includes multiple part numbers: STP15N06LFI, STP15N06L.
Please refer to the document for exact specifications by model.
