STP15N80K5 N-channel Power MOSFET

STP15N80K5 Description

STB15N80K5, STF15N80K5, STP15N80K5, STW15N80K5 N-channel 800 V, 0.3 Ω typ., 14 A MDmesh™ K5 Power MOSFETs in D2PAK, TO-220FP, TO-220 and TO-247 packag.
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STP15N80K5 Features

* Order code VDS STB15N80K5 STF15N80K5 800 V STP15N80K5 STW15N80K5 RDS(on)max 0.375 Ω ID 14 A PTOT 190 W 35 W 190 W
* Industry’s lowest RDS(on) x area
* Industry’s best figure of merit (FoM)
* Ultra low gate charge
* 100% avalanche tested
* Zener-protected

📥 Download Datasheet

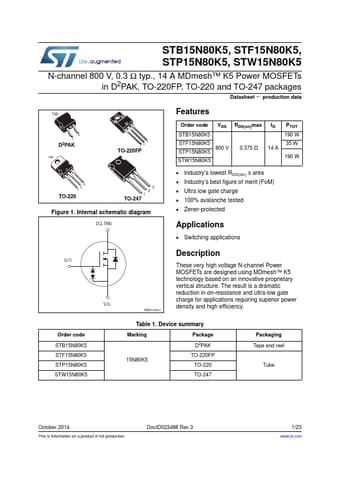

Preview of STP15N80K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
