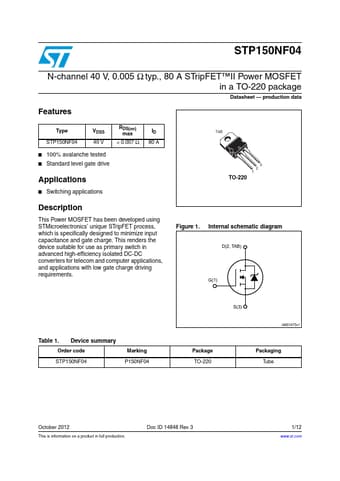

STP150NF04 Datasheet, Mosfet, STMicroelectronics

STP150NF04 Features

• Mosfet Type STP150NF04 VDSS 40 V RDS(on) max < 0.007 Ω
• 100% avalanche tested
• Standard level gate drive ID 80 A Applications
• Switching applications TAB 3 2

PDF File Details

Part number:

STP150NF04

Manufacturer:

STMicroelectronics ↗

File Size:

265.76kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET has been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize in

STP150NF04 Application

• Applications
• Switching applications TAB 3 2 1 TO-220 Description This Power MOSFET has been developed using STMicroelectronics’ unique S
