STP150N10F7 Datasheet, Mosfet, STMicroelectronics

STP150N10F7 Features

  • Mosfet Order codes STI150N10F7 STP150N10F7 VDS RDS(on)max ID PTOT 100 V 0.0042 Ω 110 A 250 W
  • Among the lowest RDS(on) on the market
  • Excellent figure of merit (FoM)

PDF File Details

Part number:

STP150N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

802.41kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These N-channel Power MOSFETs utilize STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

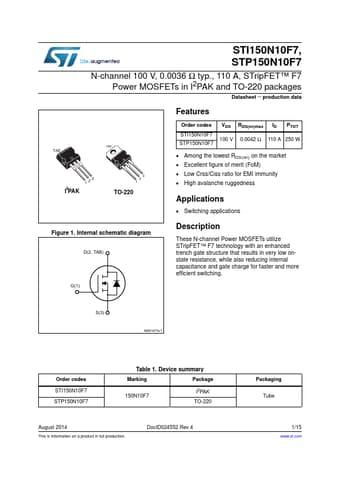

Datasheet Preview: STP150N10F7 📥 Download PDF (802.41kb)
Page 2 of STP150N10F7 Page 3 of STP150N10F7

STP150N10F7 Application

  • Applications
  • Switching applications Figure 1. Internal schematic diagram ' 7$%
  •  Description These N-channel Power MOSFET
