STP15N95K5

N-channel Power MOSFETs

STMicroelectronics

STP15N95K5 Features

* Order codes STF15N95K5 3 2 1 VDS RDS(on)max 0.5 Ω ID PTOT 30 W STP15N95K5 STW15N95K5 950 V 12 A 170 W TO-220FP TAB

* TO-220 worldwide best RDS(on)

* Worldwide best FOM (figure of merit) 3 1 2

* Ultra low gate charge 3 2 1 TO-220

* 100% avalanche tested

STP15N95K5 General Description

G(1) S(3) AM01476v1 These devices are N-channel Power MOSFETs developed using SuperMESH™ 5 technology. This revolutionary, avalanche-rugged, high voltage Power MOSFET technology is based on an innovative proprietary vertical structure. The result is a drastic reduction in on-resistance and ultra l.

STP15N95K5 Datasheet (667.99 KB)

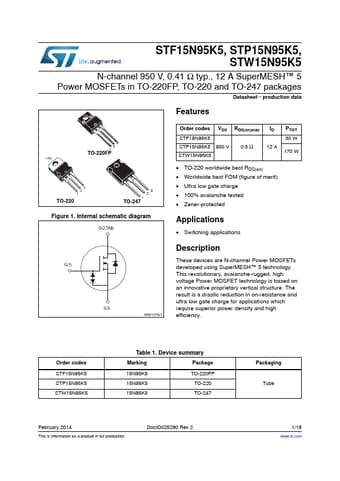

STP15N95K5 Datasheet Preview — Preview of STP15N95K5 PDF

Datasheet Details

Part number:

STP15N95K5

Manufacturer:

STMicroelectronics ↗

File Size:

667.99 KB

Description:

N-channel power mosfets.
STF15N95K5, STP15N95K5, STW15N95K5 N-channel 950 V, 0.41 Ω typ., 12 A SuperMESH™ 5 Power MOSFETs in TO-220FP, TO-220 and TO-247 packages Datasheet - p.
