STP45N60DM2AG Datasheet, Mosfet, STMicroelectronics

STP45N60DM2AG Features

  • Mosfet Order code STP45N60DM2AG VDS @ TJmax. 650 V RDS(on) max. 0.093 Ω ID PTOT 34 A 250 W Figure 1: Internal schematic diagram
  • Designed for automotive applications and AEC-Q10

PDF File Details

Part number:

STP45N60DM2AG

Manufacturer:

STMicroelectronics ↗

File Size:

305.55kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Q

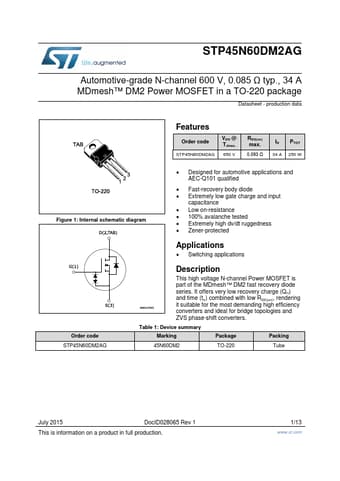

Datasheet Preview: STP45N60DM2AG 📥 Download PDF (305.55kb)
Page 2 of STP45N60DM2AG Page 3 of STP45N60DM2AG

STP45N60DM2AG Application

  • Applications and AEC-Q101 qualified
  • Fast-recovery body diode
  • Extremely low gate charge and input capacitance
  • Low on-re
