STP45N10F7

N-CHANNEL POWER MOSFET

STP45N10F7 Features

* Order codes STD45N10F7 STI45N10F7 STP45N10F7 VDS RDS(on) max.(1) 100 V 0.018 Ω 1. @ VGS = 10 V

* Ultra low on-resistance

* 100% avalanche tested ID 45 A PTOT 60 W Applications

* Switching applications Description These devices utilize the 7th generation of design rul

STP45N10F7 General Description

These devices utilize the 7th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure. The resulting Power MOSFET exhibits the lowest RDS(on) in all packages. 3 !-V Order codes STD45N10F7 STI45N10F7 STP45N10F7 Table 1. Device summary Marking Pack.

STP45N10F7 Datasheet (1.13 MB)

Preview of STP45N10F7 PDF

Datasheet Details

Part number:

STP45N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

1.13 MB

Description:

N-channel power mosfet.

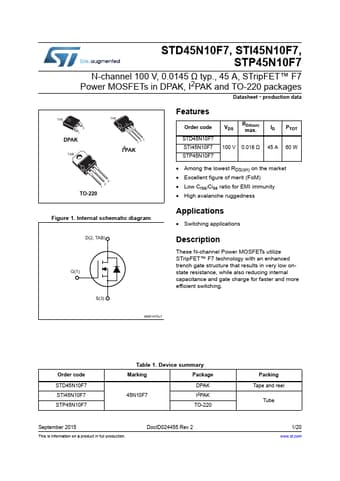

STD45N10F7, STI45N10F7, STP45N10F7 N-channel 100 V, 0.0145 Ω typ., 45 A, STripFET™ VII DeepGATE™ Power MOSFETs in DPAK, I2PAK and TO-220 packages Data.
