STP42N60M2-EP Datasheet, Mosfet, STMicroelectronics

STP42N60M2-EP Features

  • Mosfet Order code VDS @ TJmax RDS(on) max. ID STB42N60M2-EP STP42N60M2-EP 650 V 0.087 Ω 34 A STW42N60M2-EP
  • Extremely low gate charge
  • Excellent output capacitance (C

PDF File Details

Part number:

STP42N60M2-EP

Manufacturer:

STMicroelectronics ↗

File Size:

1.02MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using MDmesh™ M2 EP enhanced performance technology. Thanks to their strip layout

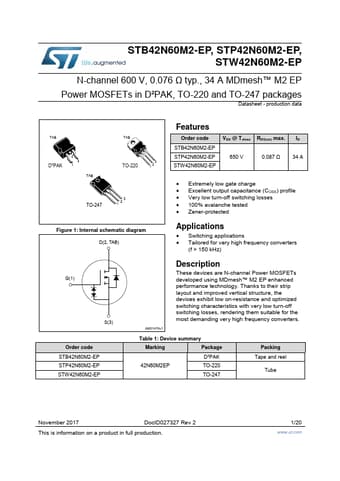

Datasheet Preview: STP42N60M2-EP 📥 Download PDF (1.02MB)
Page 2 of STP42N60M2-EP Page 3 of STP42N60M2-EP

STP42N60M2-EP Application

  • Applications
  • Switching applications
  • Tailored for very high frequency converters (f > 150 kHz) G(1) S(3) Order code STB42N60M2-E
