STP46NF30 - N-channel MOSFET

Product Overview

STMicroelectronics

Datasheet Details

Part number	STP46NF30
Manufacturer	STMicroelectronics
File Size	792.46 KB
Description	N-channel MOSFET
Datasheet	STP46NF30 Datasheet

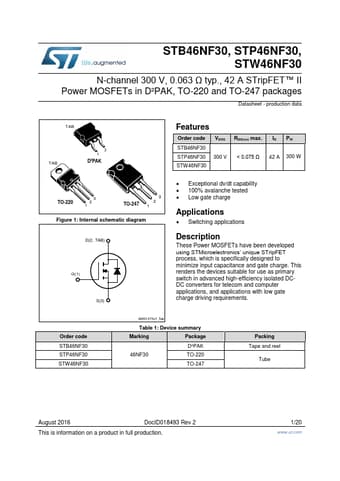

Additional preview pages of the STP46NF30 datasheet.

Product details

Description

These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge.

Features

TAB TAB Type STB46NF30 STP46NF30 STW46NF30.
VDSS 300 V 300 V 300 V RDS(on) max < 0.075 Ω < 0.075 Ω < 0.075 Ω ID 42 A 42 A 42 A Pw 3 300 W 300 W 300 W 1 1 2 3 D²PAK TO-220 Exceptional dv/dt capability 100% avalanche tested Low gate charge TO-247 2 1 3.
