STPS160-Y

Automotive power Schottky rectifier

STPS160-Y Features

* Very small conduction losses

* Negligible switching losses

* Low forward voltage drop

* Surface mount miniature packages

* Avalanche capability specified

* ECOPACK®2 compliant components

* AEC-Q101 qualified Description Single chip Schottky rectifiers suited to switched

STPS160-Y General Description

Single chip Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA and SMB, this device is especially intended for surface mounting and used in low voltage, high frequency inverters, free wheeling and polarity protection for automotive appl.

STPS160-Y Datasheet (146.04 KB)

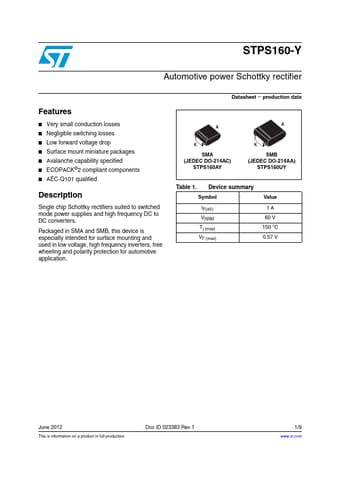

Preview of STPS160-Y PDF

Datasheet Details

Part number:

STPS160-Y

Manufacturer:

STMicroelectronics ↗

File Size:

146.04 KB

Description:

Automotive power schottky rectifier.
