STPS16045TV

POWER SCHOTTKY RECTIFIER

STPS16045TV Features

* VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES EXTREMELY FAST SWITCHING LOW THERMAL RESISTANCE INSULATED PACKAGE: Insulating voltage = 2500 V(RMS) Capacitance = 45 pF DESCRIPTION Dual power Schottky rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters

STPS16045TV General Description

Dual power Schottky rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in ISOTOP, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. ABSOLUTE RATINGS (limiting valu.

STPS16045TV Datasheet (48.35 KB)

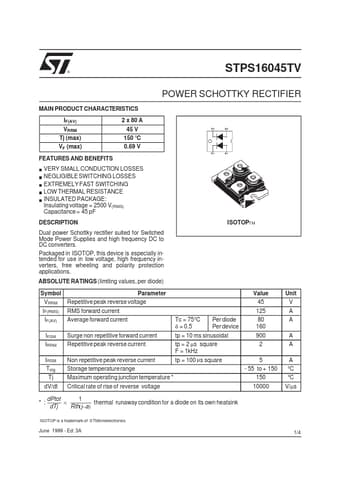

Preview of STPS16045TV PDF

Datasheet Details

Part number:

STPS16045TV

Manufacturer:

STMicroelectronics ↗

File Size:

48.35 KB

Description:

Power schottky rectifier.
