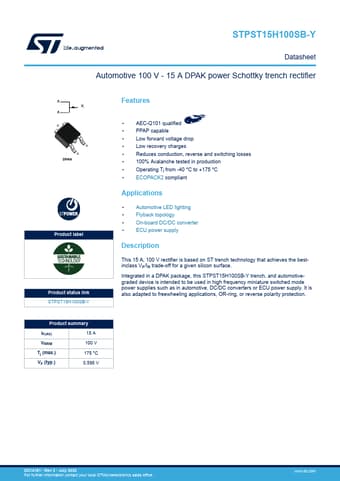

STPST15H100SB-Y Datasheet, Rectifier, STMicroelectronics

STPST15H100SB-Y Features

• Rectifier
• AEC-Q101 qualified
• PPAP capable
• Low forward voltage drop
• Low recovery charges
• Reduces conduction, reverse and switching losses

PDF File Details

Part number:

STPST15H100SB-Y

Manufacturer:

STMicroelectronics ↗

File Size:

528.08kb

Download:

📄 Datasheet

Description:

Schottky trench rectifier. This 15 A, 100 V rectifier is based on ST trench technology that achieves the bestinclass VF/IR trade-off for a given silicon surface

STPST15H100SB-Y Application

• Applications
• Automotive LED lighting
• Flyback topology
• On-board DC/DC converter
• ECU power supply Description
