STPS0530Z Datasheet, Rectifiers, ST Microelectronics

STPS0530Z Features

  • Rectifiers s s s VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES EXTREMELY FAST SWITCHING DESCRIPTION Single Schottky rectifier suited for switch mode power supplies and high frequenc

PDF File Details

Part number:

STPS0530Z

Manufacturer:

STMicroelectronics ↗

File Size:

228.99kb

Download:

📄 Datasheet

Description:

Schottky rectifiers. Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in SOD-123, this dev

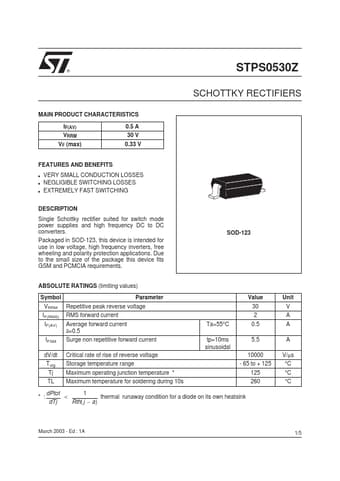

Datasheet Preview: STPS0530Z 📥 Download PDF (228.99kb)
Page 2 of STPS0530Z Page 3 of STPS0530Z

STPS0530Z Application

  • Applications Due to the small size of the package this device fits GSM and PCMCIA requirements. SOD-123 ABSOLUTE RATINGS (limiting values) Symbol
