STPS1045HR - Schottky rectifier

Product Overview

ST Microelectronics

📥 Download Datasheet

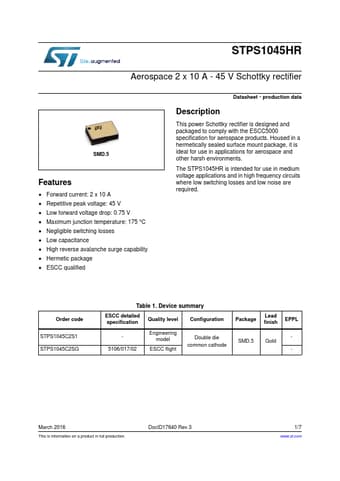

STPS1045HR Schottky rectifier by ST Microelectronics - Datasheet Preview — Datasheet preview – STPS1045HR

Datasheet Details

Part number	STPS1045HR
Manufacturer	STMicroelectronics
File Size	106.17 KB
Description	Schottky rectifier
Datasheet	STPS1045HR Datasheet
Additional preview pages of the STPS1045HR datasheet.

Product details

Description

This power Schottky rectifier is designed and packaged to comply with the ESCC5000 specification for aerospace products.

Features

Forward current: 2 x 10 A.
Repetitive peak voltage: 45 V.
Low forward voltage drop: 0.75 V.
Maximum junction temperature: 175 °C.
Negligible switching losses.
Low capacitance.
High reverse avalanche surge capability.
Hermetic package.
ESCC qualified Datasheet - production data.
