STPS1045 Power Schottky rectifier

STPS1045 Description

Main product characteristics IF(AV) VRRM VF 10 A 45 V 0.57 V .
Single chip Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

STPS1045 Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop
* Insulated package: TO-220FPAC Insulating voltage = 2000V DC Capacitance = 12 pF

STPS1045 Applications

* STPS1045 Power Schottky rectifier AK A K TO-220AC STPS1045D A K TO-220FPAC STPS1045FP March 2007 Rev 6 1/8 www. st. com 8 Characteristics 1 Characteristics STPS1045 Table 1. Absolute Ratings (limiting values) Symbol Parameter VRRM IF(RMS) IF(AV) Repetitive peak reverse voltage RMS forw

📥 Download Datasheet

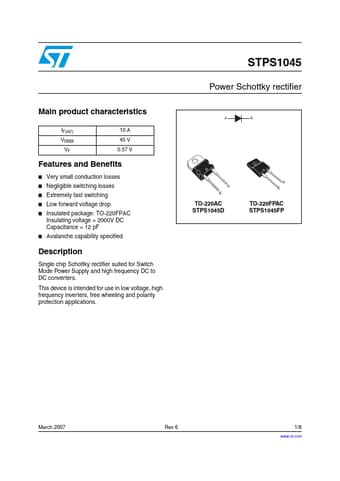

Preview of STPS1045 PDF
datasheet Preview Page 2 datasheet Preview Page 3
