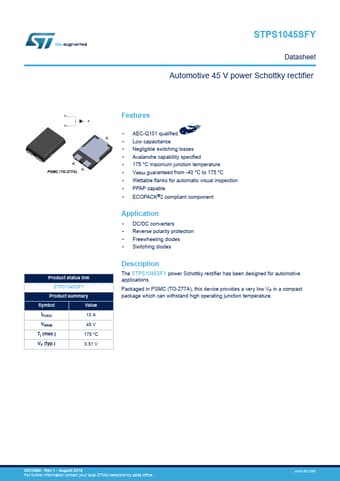

STPS1045SFY Datasheet, Rectifier, STMicroelectronics

STPS1045SFY Features

• Rectifier
• AEC-Q101 qualified
• Low capacitance
• Negligible switching losses
• Avalanche capability specified
• 175 °C maximum junction temperature

PDF File Details

Part number:

STPS1045SFY

Manufacturer:

STMicroelectronics ↗

File Size:

458.15kb

Download:

📄 Datasheet

Description:

Automotive 45 v power schottky rectifier. The STPS1045SFY power Schottky rectifier has been designed for automotive applications. Packaged in PSMC (TO-277A), this device provi

STPS1045SFY Application

• Applications Packaged in PSMC (TO-277A), this device provides a very low VF in a compact package which can withstand high operating junction temper

TAGS

STPS1045SFY

STMicroelectronics
