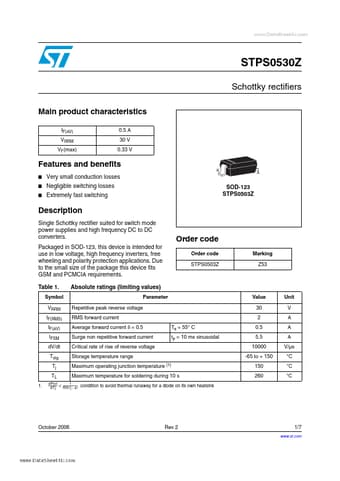

STPS0503Z Datasheet, Rectifiers, STMicroelectronics

STPS0503Z Features

• Rectifiers
• K Very small conduction losses Negligible switching losses Extremely fast switching SOD-123 STPS0503Z A Description Single Schottky rectifier suited fo

PDF File Details

Part number:

STPS0503Z

Manufacturer:

STMicroelectronics ↗

File Size:

122.42kb

Download:

📄 Datasheet

Description:

Schottky rectifiers. Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in SOD-123, this dev

STPS0503Z Application

• Applications Due to the small size of the package this device fits GSM and PCMCIA requirements. Table 1. Symbol VRRM IF(RMS) IF(AV) IFSM dV/dt Tstg
