STPST1H100 Datasheet, Rectifier, STMicroelectronics

STPST1H100 Features

• Rectifier
• ST trench patented process
• High junction temperature capability
• Low forward voltage drop
• Low recovery charges
• Reduces conduction, rever

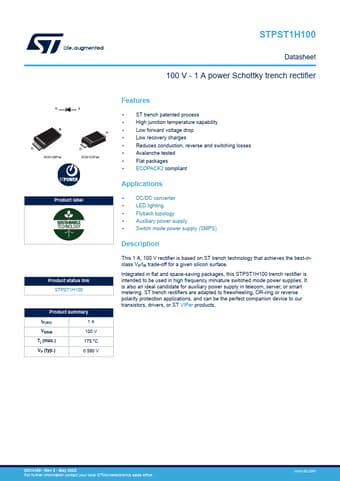

PDF File Details

Part number:

STPST1H100

Manufacturer:

STMicroelectronics ↗

File Size:

424.41kb

Download:

📄 Datasheet

Description:

Power schottky trench rectifier. This 1 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface

STPST1H100 Application

• Applications
• DC/DC converter
• LED lighting
• Flyback topology
• Auxiliary power supply
• Switch mode powe
