STPST2H100-Y Datasheet, Rectifier, STMicroelectronics

STPST2H100-Y Features

  • Rectifier
  • AEC-Q101 qualified
  • PPAP capable
  • Low forward voltage drop
  • Low recovery charges
  • Reduces conduction, reverse and switching losses

PDF File Details

Part number:

STPST2H100-Y

Manufacturer:

STMicroelectronics ↗

File Size:

558.73kb

Download:

📄 Datasheet

Description:

Schottky trench rectifier. This 2 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface

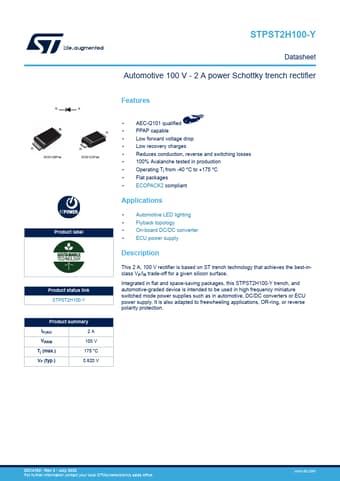

Datasheet Preview: STPST2H100-Y 📥 Download PDF (558.73kb)
Page 2 of STPST2H100-Y Page 3 of STPST2H100-Y

STPST2H100-Y Application

  • Applications
  • Automotive LED lighting
  • Flyback topology
  • On-board DC/DC converter
  • ECU power supply Description

TAGS

STPST2H100-Y
Schottky
trench
rectifier
STMicroelectronics
