STPST8H100

power Schottky trench rectifier

STMicroelectronics

STPST8H100 Features

* High junction temperature capability

* Low forward voltage drop

* Low recovery charges

* Reduces conduction, reverse and switching losses

* Avalanche tested

* Flat packages

* ECOPACK2 compliant Applications

* DC/DC converter

STPST8H100 General Description

This 8 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface. Integrated in flat and space-saving packages, this STPST8H100 trench rectifier is intended to be used in high frequency miniature switched mode power supplies. It is.

STPST8H100 Datasheet (363.39 KB)

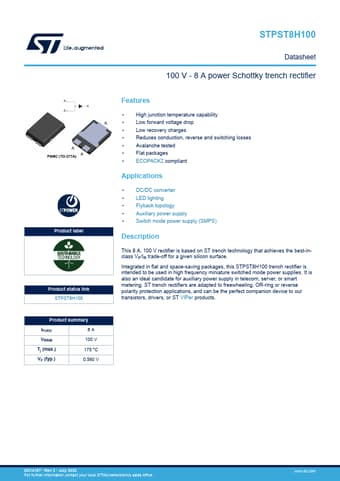

STPST8H100 Datasheet Preview — Preview of STPST8H100 PDF

Datasheet Details

Part number:

STPST8H100

Manufacturer:

STMicroelectronics ↗

File Size:

363.39 KB

Description:

Power schottky trench rectifier.
Product label Product status link STPST8H100 Product summary IF(AV) 8A VRRM 100 V Tj (max.) 175 °C VF (typ.) 0.560 V STPST8H100 Datasheet 1.
