STTA9012TV1 ULTRA-FAST HIGH VOLTAGE DIODE

STTA9012TV1 Description

® STTA9012TV1/2 TURBOSWITCHTM ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) www.DataSheet4U.com K2 A2 A2 K1 2 x 45A 1200V 65ns .
TURBOSWITCH 1200V drastically cuts losses in all high voltage operationswhich require extremely fast, soft and noise-free power diodes.

STTA9012TV1 Features

* ULTRA-FAST, SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY AND/OR HIGH PULSED CURRENT OPERATION. HIGH REVERSE VOLTAGE CAPABILITY. LOW INDUCTANCE PACKAGE < 5 nH. INSULATED PACKAGE : Electrical insulation : 2500VRMS Capacitance : < 45pF. DES

STTA9012TV1 Applications

* (Fig A to D),the way of calculating the power losses is given below : www. DataSheet4U. com TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CONDUCTION LOSSES in the diode REVERSE LOSSES in the diode SWITCHING LOSSES in the diode SWITCHING LOSSES in the tansistor due to the diode Fig

📥 Download Datasheet

Preview of STTA9012TV1 PDF

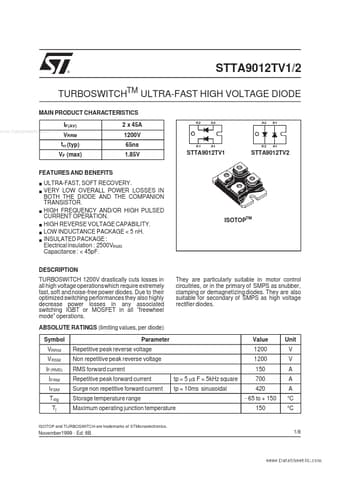

datasheet Preview Page 2 datasheet Preview Page 3
