STTS2002 - 2.3 V memory module temperature sensor

STMicroelectronics

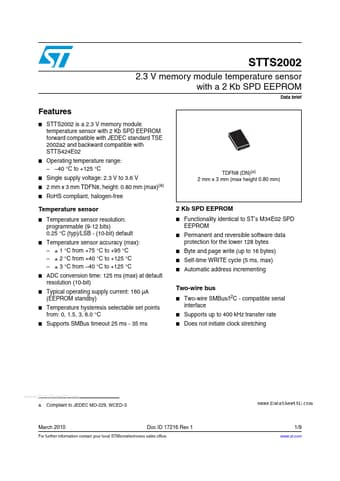

STTS2002 Datasheet Preview — Preview of STTS2002 PDF

Datasheet Details

Part number	STTS2002
Manufacturer	STMicroelectronics ↗
File Size	169.64 KB
Description	2.3 V memory module temperature sensor
Datasheet	STTS2002_STMicroelectronics.pdf

STTS2002 Product details

Description

STTS2002 1 Description The STTS2002 is targeted for DIMM modules in mobile personal computing platforms (laptops), servers and other industrial applications.The thermal sensor (TS) in the STTS2002 is compliant with the JEDEC specification TSE2002a2, which defines memory module thermal sensors requirements for mobile platforms.The 2 Kbit serial presence detect (SPD) I2C-compatible electrically erasable programmable memory (EEPROM) in the STTS2002 is organized as 256 x8 bits and is functional

Features

STTS2002 is a 2.3 V memory module temperature sensor with 2 Kb SPD EEPROM forward compatible with JEDEC standard TSE 2002a2 and backward compatible with STTS424E02 Operating temperature range:.
40 °C to +125 °C Single supply voltage: 2.3 V to 3.6 V 2 mm x 3 mm TDFN8, height: 0.80 mm (max)(a) RoHS compliant, halogen-free.
TDFN8 (DN)(a) 2 mm x 3 mm (max height 0.80 mm) Temperature sensor.
2 Kb SPD EEPROM.
Temper.
