STTS424 - Memory module temperature sensor

STMicroelectronics

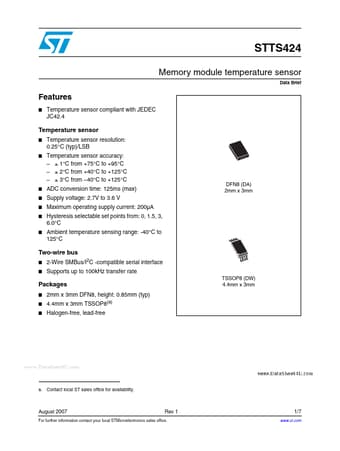

STTS424 Datasheet Preview — Preview of STTS424 PDF

Datasheet Details

Part number	STTS424
Manufacturer	STMicroelectronics ↗
File Size	95.03 KB
Description	Memory module temperature sensor
Datasheet	STTS424_STMicroelectronics.pdf

STTS424 Product details

Description

STTS424 Description The STTS424 is targeted for DIMM modules in Mobile Personal Computing Platforms (Laptops), Server Memory Modules, and other industrial applications.The thermal sensor (TS) in the STTS424 is fully compliant to the JEDEC 42.4 specification which defines Memory Module Thermal Sensors requirements for Mobile platforms.The TS provides space as well as cost savings for Mobile and Server Platform Dual Inline Memory Modules (DIMM) manufacturers, as it is packaged in the compact 2

Features

Temperature sensor compliant with JEDEC JC42.4 Temperature sensor.
Temperature sensor resolution: 0.25°C (typ)/LSB Temperature sensor accuracy:.
± 1°C from +75°C to +95°C.
± 2°C from +40°C to +125°C.
± 3°C from.
40°C to +125°C ADC conversion time: 125ms (max) Supply voltage: 2.7V to 3.6 V Maximum operating supply current: 200µA Hysteresis selectable set points from: 0, 1.5, 3, 6.0°C Ambient temperature sensing range: -40°C to 125°C.
